Newcon Optik TVS 11M 384x288-25mm 50Hz Thermal Imaging Monocular
Newcon Optik TVS 11M 384-25 Thermal Imaging Monocular

Newcon Optik TVS 11M 384x288-25mm 50Hz Thermal Imaging Monocular

. Please double check with our staff via online chat, email, or phone to confirm product availability and lead times. Contact us for more questions.
. Satisfaction Guarantee: 30 Days no Hassle Return (Terms & Conditions Applies)
. Multiple Payment Options ( All Debit, Credit Cards, EMT, Wire Transfers, Financing)

Your Price: CAD14,999.00
Generally Ships in 5-10 Business Days
Part Number:TVS 11M

Choose Options or Accessories if Applicable

Newcon TVS Accessories
TVS 11M Hard Case - MIL-SPEC hard case for protection while transporting/storing unit and its standard delivery set. [+CAD769.00]

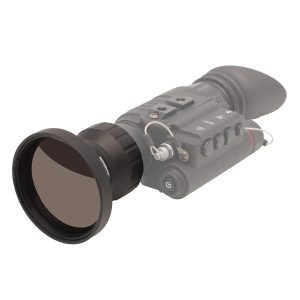

TVS 2x Lens - This 2x afocal add-on lens for TVS 11M significantly increases the device’s detection and recognition range capabilities when used. [+CAD3,779.00]
TVSD - Thermal HD Recorder, for use with all Newcon Optik TVS devices. [+CAD899.00]

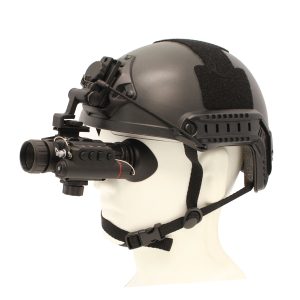

NVS S Mount - This mount allows direct attachment of the goggle or monocular to the FAST Helmet or any other compatible Helmet with “VAS Shroud” installed. [+CAD519.00]

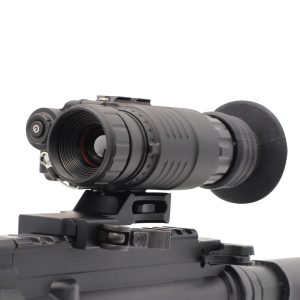

NVS QR Mount - Quick Release flip-to-side MIL-STD-1913 Weapon Mount. [+CAD409.00]

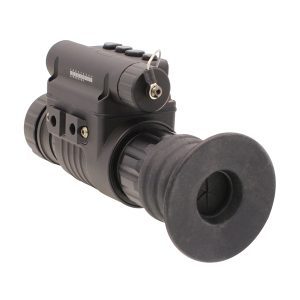

TVS SE - Shuttered eyepiece prevents light leakage from the TVS 11M's display while operating in the field.
Special Order / Made Accordingly help
Ships Worldwide - This item qualifies for international shipping. help

Product Highlights

  • Available optional 2x lens
  • High-resolution uncooled thermal sensor
  • Superb image clarity
  • Ergonomic design Simple to operate

The TVS 11M tactical thermal monocular is the next generation of Newcon Optik's tried and tested thermal monocular series. As a lightweight and compact handheld, helmet or weapon mounted device, the TVS 11M is well suited to a variety of tactical, law enforcement, search and rescue and industrial applications. The TVS 11M utilizes passive infrared sensing technology allowing users to detect extremely small differences in the temperature of objects, people and other heat sources within the field of view.

Unlike traditional night vision devices, the TVS 11M can be operated 24 hours a day, in daytime and at night, even in the total darkness of an enclosed space, has the ability to see through smoke, fog and other obscurants, boasts a variety of colour and contrast settings and digital zoom capability. The TVS 11M can also be connected to external display devices allowing other parties to view the observed image in real time.


Resolution (pixels) 384x288
Operating wavelength (µ) 7 - 14
Sensitivity (mK @F1.0) <60
Video Output PAL or NTSC
DRI range (m)* 1200/300/150

Objective focal length (mm)


Field of view (°)


Eye relief (mm)


Dioptric correction

-6 to +2

Zoom 2x, 4x
Mechanics, Electronics & Environmental

Dimensions (mm)


Weight without batteries (g)


Battery type

1x 18500

Battery life (hours)


Operating Temperature (°C)

-40 to +60

In the Box
Newcon Optik TVS 11M 384x288-25mm 50Hz Thermal Imaging Monocular

  • Objective Lens Cap
  • Operation Manual
  • Soft Case
  • 3.7V/1800mAh Li-on or 2xCR123 Lithium batteries
  • Car power adaptor
  • USB Cable
  • Video/Charge Cable
  • Wrist Strap
  • Head gear
  • TVS head gear adaptor

Optional Accessories

TVS 11M Hard Case TVS 2x Lens TVSD
