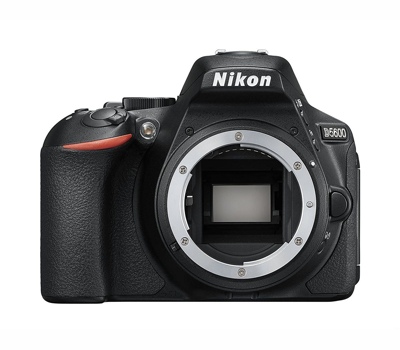

The D5600 FullRange DSLR camera is
based on Nikon D5600 towards which uses a modified internal filter that
ensures greater sensitivity, especially in the visible, and that also
makes it sensitive to the infrared and ultraviolet wavelengths. In this
way the D5600 FullRange is the DSLR camera perfect for astrophotography
(since it's more sensitive than normal DSLR cameras) and for UV and IR
photography (which can be performed with photographic lenses since for
the D5600 FullRange we perform the autofocus calibration).
We perform the Nikon D5600 filter change in our laboratory where our
technicians, using appropriate instruments, replace the filter in
cleanroom (to prevent dust between sensor and filter) and electrically
static place. We are Nikon official distributors so our modified cameras
keep the original 4 YEARS OFFICIAL WARRANTY (Nital) !
D5600 FullRange camera extends the sensitivity of D5600a camera at
infrared and ultraviolet, thanks to the special filter that is installed
in front of the sensor, in place of the original one. More, after
replacing the filter, we check and calibrate of the focus point allowing
autofocus to work perfectly with the normal Nikon lenses!
way you will have both a perfect camera for astrophotography since it
offers a greater sensitivity to red and, in particular to the more
important emission line, the H-alpha, emitted by many nebulae) but also
for UV and IR photography!
Nikon for astrophotography
Nikon DSLR cameras offer all the advanced features needed for astrophotography like:
- low electriconic noise
- high ISO sensitivity (from 100 to 25600)
- Live View for an easy focusing on the screen
- control from PC
Among Nikon models, we selected the D5600 for astrophotography because it offers a high quality sensor and an swiveling touchscreen LCD screen that is particularly useful when the camera is inserted into the telescope's focuser.
Also, in the sensor of the D5600 the low pass filter was removed in order to increase the image's resolution compared to cameras that use this filter.
Nikon for UV and IR photography
In respect of D5600a camera (that is is the version created specifically for astrophotography), the D5600 FullRange adds:
- infrared sensitivity
- ultraviolet sensitivity
- perfect autofocus functioning
when you change the filter inside the camera, you lose autofocus
operation because, even if the filter is made of the same thickness than
the original one, some infinitesimal difference remains.
So we check and calibrate the focus
point allowing autofocus to work perfectly: you will be able to do IR
and UV photography even using autofocus watching the live image on the
Picture recorded with D5600 FullRange DSLR camera and IR 77mm filter
Modified filter for higher sensitivity
to keep a proper color balance in daylight use, DSLRs use a filter
placed in front of the sensor that is not completely transparent,
especially at longer wavelengths corresponding to red. In astronomical
application that is a problem because the most important emission line,
the H-alpha (emitted by many nebulae for example) is right in the red
part of the spectrum.
D5600 FullRange camera replaces the original filter with a model
designed specifically for astrophotography increasing the camera
sensitivity and allowing you to take brighter pictures.
The D5600 FullRange, compared to the D5600a version, uses a particular filter that lets pass also the infrared and ultraviolet radiation. The D5600a instead has a UV/IR Cut filter that lets pass only the visible wavelenghts.
compare the transmittance curves of the two solutions in the right
graph. Since many telescopes (for example the ones use lenses such as
refractors) have no good correction in the infrared and the ultraviolet
part of the spectrum, the D5600a is the most practical solution for
astrophotography (since it cuts off these wavelengths). If you own a
telescope properly corrected in UV and IR (such as a mirror telescope
without internal corrective lenses), you can also use the D5600
FullRange version that also allows the infrared or ultraviolet
Certified modification and 4 years warranty
perform the Nikon D5600 filter change in our laboratory where our
technicians, using appropriate instruments, replace the filter in cleanroom (to prevent dust between sensor and filter) and electrically static place.
We are Nikon official distributors so our modified cameras keep the original 4 YEARS OFFICIAL WARRANTY (Nital)!
