Newcon Optik TVS 11 640-35 Thermal Imaging Monocular
Newcon Optik TVS 11 640-35 Thermal Imaging Monocular

Newcon Optik TVS 11 640-35 Thermal Imaging Monocular

. Please double check with our staff via online chat, email, or phone to confirm product availability and lead times. Contact us for more questions.
. Satisfaction Guarantee: 30 Days no Hassle Return (Terms & Conditions Applies)
. Multiple Payment Options ( All Debit, Credit Cards, EMT, Wire Transfers, Financing)

Your Price: CAD23,035.94
Retail Price:CAD24,699.00

Your Savings:CAD1,663.06(7%)

Specially-Order, ship in 10-20 business days
Part Number:TVS 11 (640)

Choose Options or Accessories if Applicable

Accessories ( Quote on Request )
HARD CASE - Hard water proof military standard cases.
TVSD - Thermal HD Recorder, for use with all Newcon Optik TVS devices
TVSCW Mount - Accessory rail attachment for the TVS 13M and TVS 12C.
NVS S Mount - a ruggedized helmet mount assembly (Rhino Style) providing the user with an easier, more comfortable mounting option when wearing the Night Vision Goggles or Night Vision Monoculars.
NVS H Mount - a metal helmet mount for attaching NVS 14 Night Vision Monoculars or NVS 7 Night Vision Goggles to a standard PASGT infantry helmet.
6m TVSD Cable
Special Order / Made Accordingly help
Ships Worldwide - Estimate import fees, duties, and taxes. help

Designed for law enforcement, military, and commercial use, the Newcon Optik TVS 11 640-35 Thermal Imaging Monocular is suitable for reconnaissance and surveillance, perimeter security, wildlife observation and control, and a variety of other applications. Rugged and lightweight, this monocular delivers good image quality for observation through total darkness and poor visibility conditions, including smoke, fog, and most visual obscurants.

The device is equipped with a highly sensitive, un-cooled thermal detector and a high-resolution color display, resulting in a crisp, sharp image, regardless of the ambient conditions. This Thermal Imaging Monocular can be mounted onto a weapon or used as a handheld or hands-free (being worn on the head or helmet) monocular with a wrist strap provided to secure the instrument in hand.

The TVS 11 monocular is equipped with a digital RCA interface for programming in the field. Power supply options include 2 CR123 batteries or external power through a watertight connector. This monocular features 2x and 4x digital zoom, along with various color scheme options for the display.

Designed for handheld use
High-quality image within the entire field of view
Can be worn on the head or helmet (hands-free applications) or mounted on a weapon
Mil-spec housing, waterproof up to 3.2' (1 m)
Low battery indicator shown on display
Unit's operating status shown on display
Variable color schemes
Video output
Compact and lightweight design
Resolution 640 x 512
Full Frame Rates 30 Hz (NTSC); 25 Hz (PAL)
Pixel Size 17 µ
Operating Wavelength 7.5 to 13.5 µm
Sensitivity <50 mK at F1.0
DRI range 1,280 / 320 / 160
Objective Lens Ø1.3" (Ø35.0 mm)
Objective F Number F1.20
Field of View 18 x 14°
Eye Relief 0.9" (25.0 mm)
Dioptric Correction -6 to +2
Video Output PAL or NTSC
Display MOLED, 800 x 600
Interface RCA
Temperature Range
-40 to 140°F (-40 to 60°C)
Shock Resistance
10 oz (300 g)
Hours of Operation
6 (rechargeable) / 8 (battery)
5 x 3 x 2" (130 x 80 x 60 mm)
Weight with Battery
0.959 lb (0.435 kg)
Newcon Optik TVS 11 640-35 Thermal Imaging Monocular
  • Objective Lens Cap
  • 2 x CR123 Battery
  • Car Power Adapter
  • Video/Charge Cable
  • Wrist Strap
  • Head Gear
  • TVS Head Gear Adapter
  • Soft Case
  • Limited 1-Year Warranty

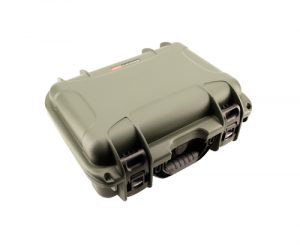

    Hard Case TVSD

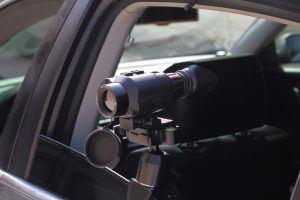

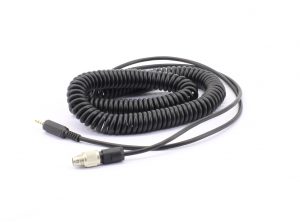

    tvscw_window_mounted tvsd_cable
    TVSCW Mount 6m TVSD Cable
    S Mount_web H Mount_web

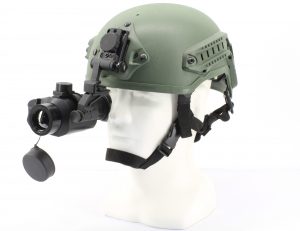

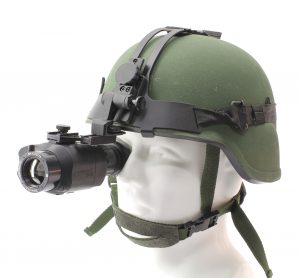

    NVS S Mount NVS H Mount
